tempered glass partition wall

Glass partition wall

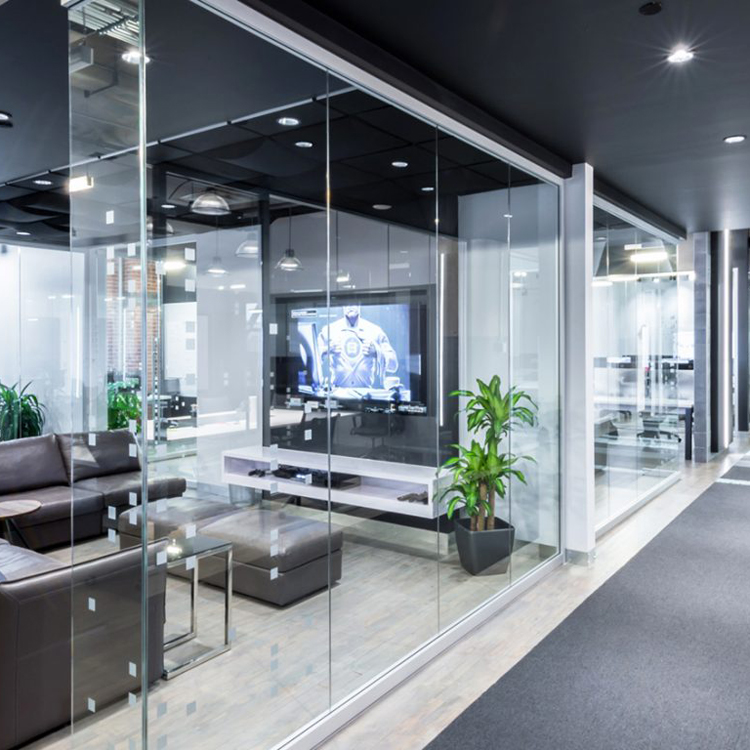

Tempered glass partition wall is used in many nice building office and restaurant,since it is beautiful appearance and strong and can get a good light.

Glass WALL Installation - Glass Door Installation Method Steps:
1, positioning, release: The combination of fixed glass and movable glass door combination of glass doors, unified positioning for the release line, according to the design and construction drawings, release glass positioning lines, and determine the location of the door frame. In the top of the groove and the bottom of the bracket at the mouth of the mouth on both sides, and thick glass and the column at the seams and other seams at the gap, into the glass seal, with a tool to scrape off the excess of plastic.
2, the top of the mounting frame limit slot: limit slot width should be greater than the glass thickness of two to four millimeters, the groove depth of ten to twenty millimeters. Installation, from the beginning of the bomb where the line leads to the two metal trim plate edge, then press the edge of the top of the door frame limit slot installation, through the glue plate to adjust the groove depth of the slot.
3, the installation of metal veneer wood bottom care: the square wooden fixed on the ground, with a universal adhesive to the metal veneer glued to the wood. If the use of aluminum square tube, you can use aluminum corners fixed to the frame column, or wood screws fixed in the buried wooden floor tiles.
4, the installation of vertical door frame: then hit the center line nail frame door square wood, plywood and then use plywood to determine the shape and location of the post, the final outsourcing of metal decorative surface. When the package finishes facing the seam to be placed on both sides of the glass door location.
5, the installation of glass: suction cup with thick glass suction tight, lift the thick glass to the installation location. First glass into the upper part of the top of the door limit slot, and then put the bottom of the glass on the care. In the end of the wood on both sides of the nail inside and outside the nail two small square wood to the thick glass sandwiched in the square wood brushing all-purpose adhesive and the decorative metal stick in the square sticks.
