Mono stringer staircase

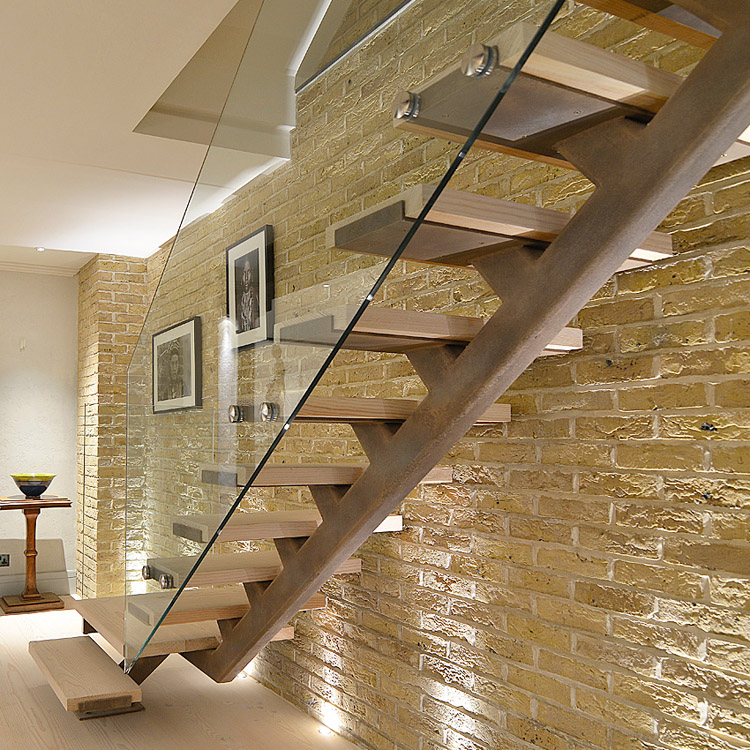

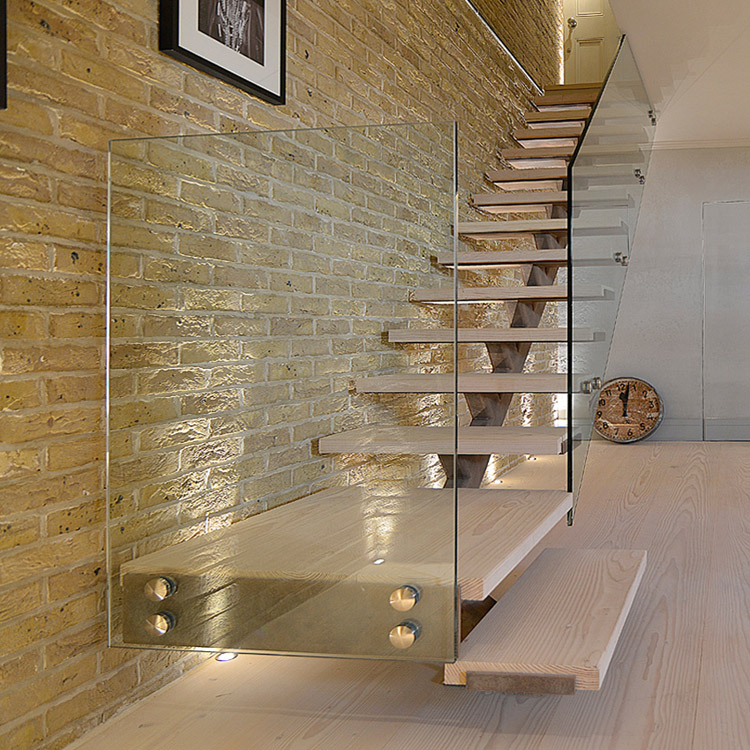

carbon steel beech mono staircase with glass railing
- Carbon steel stringer
- beech treads
- glass balustrade
- stainless steel handrail
- Product description: Steel beech mono staircase is a popular model can fit for many homes,it is fashion and modern.
Mono staircase
Standard Component/Accessories Specification of staircase:
| Component | Specification | Material | Surface Finish |
| Mono Stringer Staircase | Center rectangle beam: 100*200*4/150*150*4mm | Carbon steel / Stainless steel |
Hot dip galvanizing/ powder coated/ Brushed/Polished |
| Double stringers Staircase | Double plate beam: 300*6mm | ||
| Double beam with u channel 300*6+300*6/300*5+300*5mm | |||
| Double sawtooth stringer 300*6mm/300*8mm/300*10mm | |||
| Spiral stair Stringer | 140*4/159*4mm center post | ||
| Curved stair Stringer | Double plate beam:300*6mm | ||
| Double beam with u channel: 300*6+300*6mm | |||
| Staircase Tread | Solid wooden tread: 40mm/60mm/80mm/100mm | beach wood | Painting |
| Staircase Tread | Glass Tread: 10+1.52+10mm/12+1.52+12mm | Laminated glass | Clear/Frosted |
|
Staircase Railing: Glass panels or Steel cable |
Glass panel thickness: 12mm | Tempered glass | Clear/Frosted |
| Round baluster: dia.50.8mm/38mm/22mm | Stainless steel | Brushed/Polished | |
| Flat baluster: 10/12mm single plate / 6+6mm/5+5mm double plate | |||
| Standoff: dia.38mm | |||
| Round Handrail:dia.50.8/38mm | |||
| Square handrail: 60*30/50*50mm | |||
| Flat handrail:50*10mm | |||
| Cable/Wire: dia.4mm wire | |||
| Solid rod bar:dia.8mm solid rod | |||
|
Pipe:dia.12mm pipe(hollow) |
