Mono stringer staircase

Mono central stairway glass railing timber treads-100stringer-40treads

mono stairway
centrral stairway
glass railing
timber treads
Product description: mono central stairway
INQUIRY

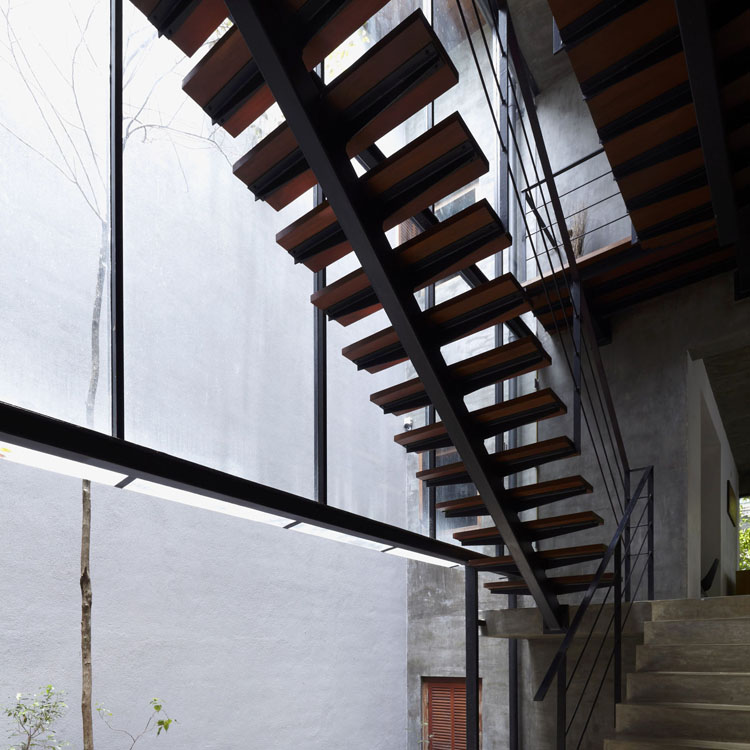

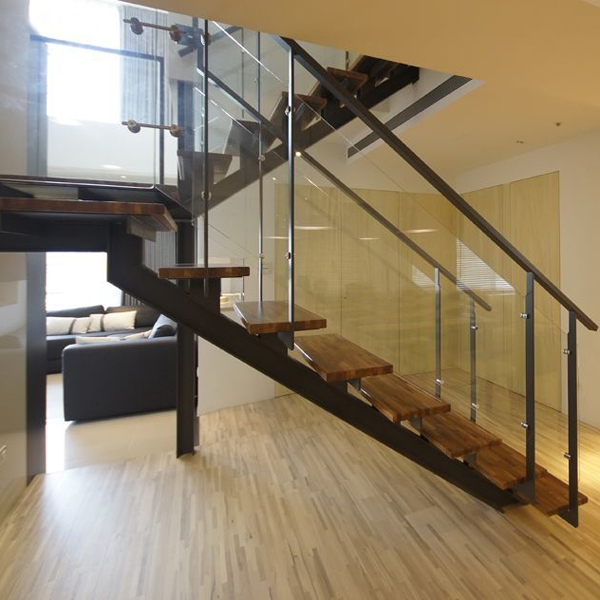

Mono stringer steel staircase is a good idea to match with our house,department,hotel,coffee shop or other interior space, since it looks simple but fashion, many people love this style.

Mono staircase is a kind of structure adopted more in public buildings in recent years.Each step of this staircase is supported by square tube stringer.Mono staircase with good shape or nice appearance,and it is lightweight, beautiful, often used for building space modeling.

Below is general data of staircase

Component	Specification	Material	Surface Finish
Mono Stringer Staircase	Center rectangle beam: 1002004/1501504mm	Carbon steel / Stainless steel	Hot dip galvanizing/ powder coated/ Brushed/Polished
Double stringers Staircase	Double plate beam: 300*6mm
	Double beam with u channel 3006+3006/3005+3005mm
	Double sawtooth stringer 3006mm/3008mm/300*10mm
Spiral stair Stringer	1404/1594mm center post
Curved stair Stringer	Double plate beam:300*6mm
Curved stair Stringer	Double beam with u channel: 3006+3006mm
Staircase Tread	Solid wooden tread: 40mm/60mm/80mm/100mm	beach wood	Painting
Staircase Tread	Glass Tread: 10+1.52+10mm/12+1.52+12mm	Laminated glass	Clear/Frosted
Staircase Railing: Glass panels or Steel cable	Glass panel thickness: 12mm	Tempered glass	Clear/Frosted
	Round baluster: dia.50.8mm/38mm/22mm	Stainless steel	Brushed/Polished
	Flat baluster: 10/12mm single plate / 6+6mm/5+5mm double plate
	Standoff: dia.38mm
	Round Handrail:dia.50.8/38mm
	Square handrail: 6030/5050mm
	Flat handrail:50*10mm
	Cable/Wire: dia.4mm wire
	Solid rod bar:dia.8mm solid rod
	Pipe:dia.12mm pipe(hollow)
